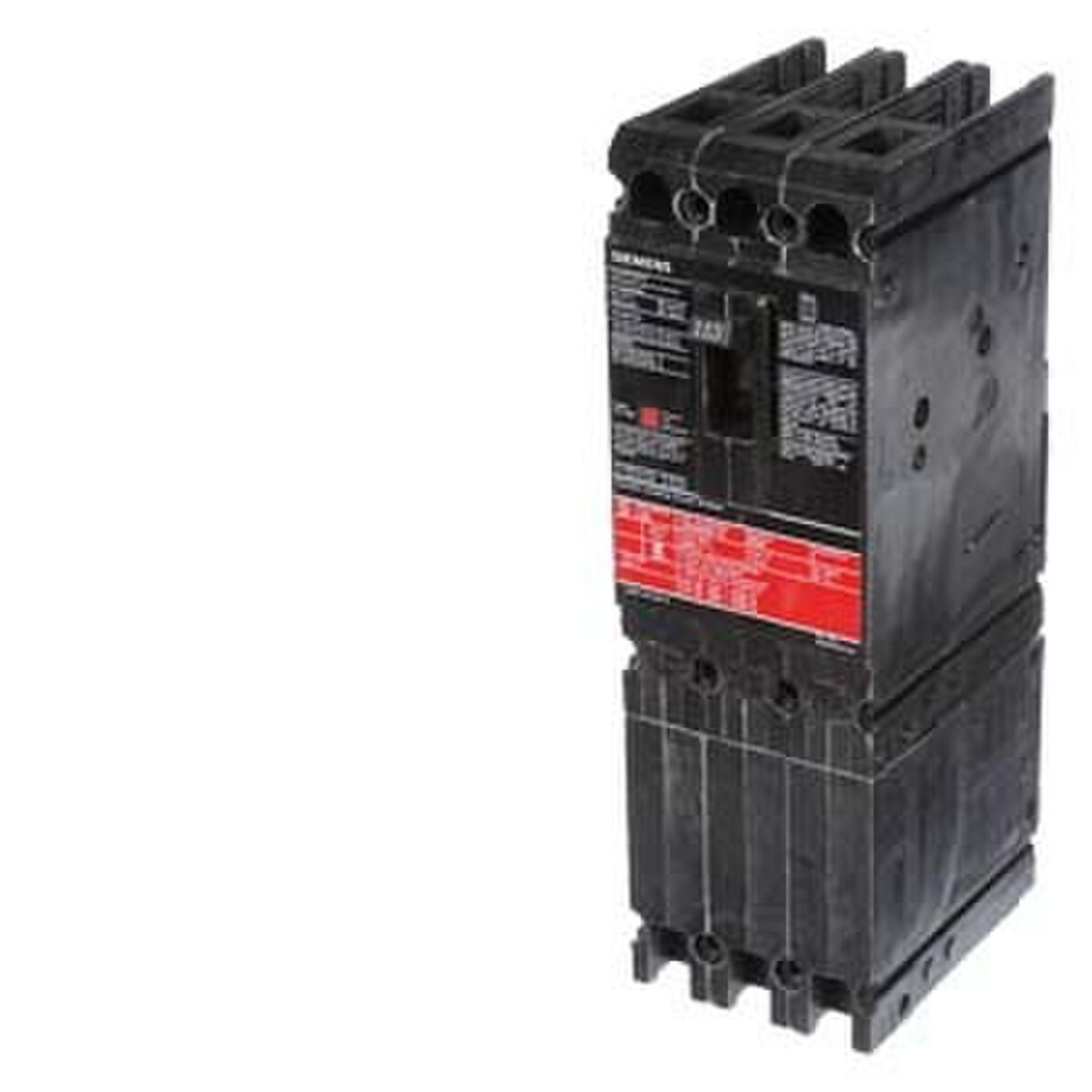

Siemens CED63B110
About This Item
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH FUSELESS CURRENT LIMITING BREAKING CAPACITY. 110A 3-POLE (100KAIC AT 600V) (200KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LOAD LUGS ONLY (TA1E6125) WIRE RANGE 3 - 3/0AWG (CU) / 1 - 2/0AWG (AL). DIMENSIONS (W x H x D) IN 3.00 x 9.6 x 3.92.
Product Specification
| UPC | 783643210769 |
|---|---|
| SKU | CED63B110 |
| Unit Count | Each |
| Unit Height (in) | 4.1 |
| Unit Width (in) | 7.9 |
| Unit Length (in) | 9.5 |
| Unit Weight (lb) | 5.7 |
| Material | N/A |
| Brand | SIEMENS |
| Sub Brand | SENTRON |
| Voltage Rating | 600VAC OR 500VDC |
| Item Usability Purpose | Standard 40C Breaker |
| Type | CED6 |
| Number of Poles | 3 |
| Frequency Rating | 50/60H |
| Frame | ED |
| Environmental Conditions | N/A |
| Actuator | Varying |
